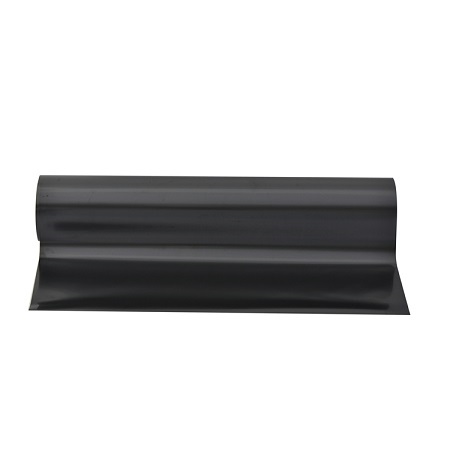

Notice of 30µm single-sided matt black polyimide tape
Black matte polyimide film is a series of products of black polyamide thin film. It is a kind of black, opaque, light transmission rate and the low film of reflectance factor. The main application is satellite shell coating, opaque overcoat, radiant heat absorber, and high temperature marking materials.
*Matte black acrylic-based adhesive with polyimide film
Applicable to the most of positioning fields of black polyamide thin film, for example: as light absorption film, with its preparation optical stationary attenuator and optical terminus device. As the coated electric components' purposes can be effectively laser-marking to the electronic component, cause laser printing to become a possibility, realize that photolithography forms image.

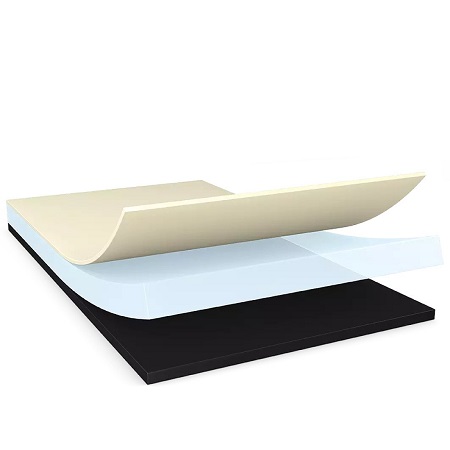

Black matt antistatic adhesive tape is extensively used in printing (system) circuit boards. Black matt polyimide film has specific purposes in optoelectronic areas. 30µm single-sided matte black polyimide tape is a matt black single-sided tape, consisting of a polyimide film backing and special anti-repulsion acrylic adhesive.
| Adhesive | Acrylic |
|---|---|
| Release Liner | PET Film |
| Tensile strength | 20 N/cm |
| Total thickness | 30 µm |
| Thickness of liner | 50 µm |
| Backing material | polyimide film |
| Adhesion to steel | 2.5 N/cm |
| Temperature resistance | 140℃ |
| Applications |
Li-battery edge wrapping |
| Fixing or wrapping applications where insulation resistance, flame retardant or high temperature is required |
